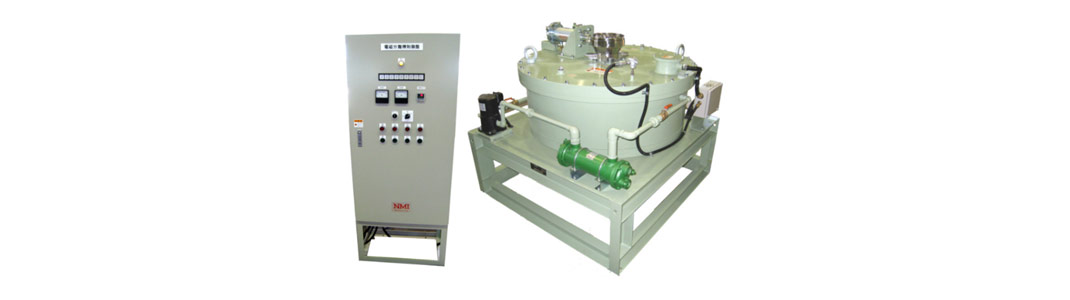

Electro Magnetic Separator (건식 분체용)
제품 모델 및 사양
Mechanical Characteristics
| ModelSpecifications | High magnetics force type |
|---|
| Maximum magnetic force(Gauss) | Approx.6,000 | Approx.9,000 | Approx.12,000 |
|---|
| Weight(kg) | 800 | 1,200 | 1,400 | 1,500 | 1,700 | 1,900 | 2,000 | 2,300 | 2,500 |
|---|
| Outside Damester of screens(mm) | 145 | 245 | 295 | 145 | 245 | 295 | 145 | 245 | 295 |
|---|
| Number of screens(max) | 13 | 13 | 14 | 19 | 16 | 16 | 20 | 17 | 17 |
|---|
| Volume of insulating oil(l) | 40 | 50 | 55 | 60 | 70 | 95 | 120 | 150 | 160 |
|---|
| Oil Cooler | Water-cooled oil cooler | Water-cooled oil cooler | Watere-cooled oil cooler |
|---|
| Oil pump | Electric power consumption 180w | Electric power consumption 180w | Electric power consumption 400w |
|---|
| Vibromotor | Ouput : 150w Vibration force : 200kg | Output : 150w Vibration force : 200kg | Output : 250w Vibration force : 350kg |
|---|
Electrical Characteristics
| ModelSpecifications | High magnetics force type |
|---|
| Power-Supply Voltage (VAC) | 200~440V | 200~440V | 200~440V |
|---|
| Load Voltage (VDC) | 90V | 107V | 116V | 175V | 217V | 233V | 180V | 218V | 235V |
|---|
| Load Voltaage (VDC) | 20A | 24A | 33A |
|---|
| Magnetization power(kw) | 1.8 | 2.1 | 2.3 | 4.2 | 5.2 | 5.6 | 5.9 | 7.2 | 7.9 |
|---|
| Rating | Continuous | Continuous | Continuous |
|---|
| control panel dimension(mm) | 450(W)x300(L)x600(H) | 500(W) x 320(L) x 700(H) | 500(W) x 320(L) x 700(H) |
|---|
| control panel weight(kg) | Approx.120kg | Approx.150kg | Approx.200kg |
|---|

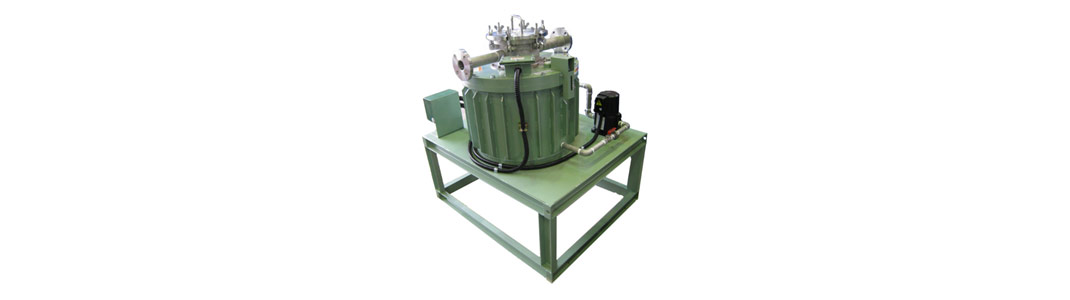

Magnet Filter (습식용)
-
제품 모델 및 사양
- 사용 가능한 가장 높은 12,000 가우스 모델 (CS-HHH)
- 컨트롤 패널 장착
- 모델 160, 모델 230, 모델 300, 400 모델
- 고성능 모델입니다.
Specifications
| Model | CS-160 | CS-230 |
|---|
| Power-supply voltage (VAC) | AC200~440V | AC200~440V |
|---|
| Load voltage (VDC) | DC 45V | DC 120V |
|---|
| Load current (Ambient Temp) | DC 13A | DC 13A |
|---|
| Magnetization power(kw) | 0.58kw | 1.56kw |
|---|
| Number of filter plate | Max. 25pcs | Max. 30pcs |
|---|
| Weight (kg) | Approx. 400kg | Approx. 850kg |
|---|
| Pose Size | 40A | 80A |
|---|
| Rating | Continuous | Continuous |
|---|
| Volume of insulating oil | 18l | 90l |
|---|
| Magnetic Field | 3,000 GAUSS | 3,000 GAUSS |
|---|

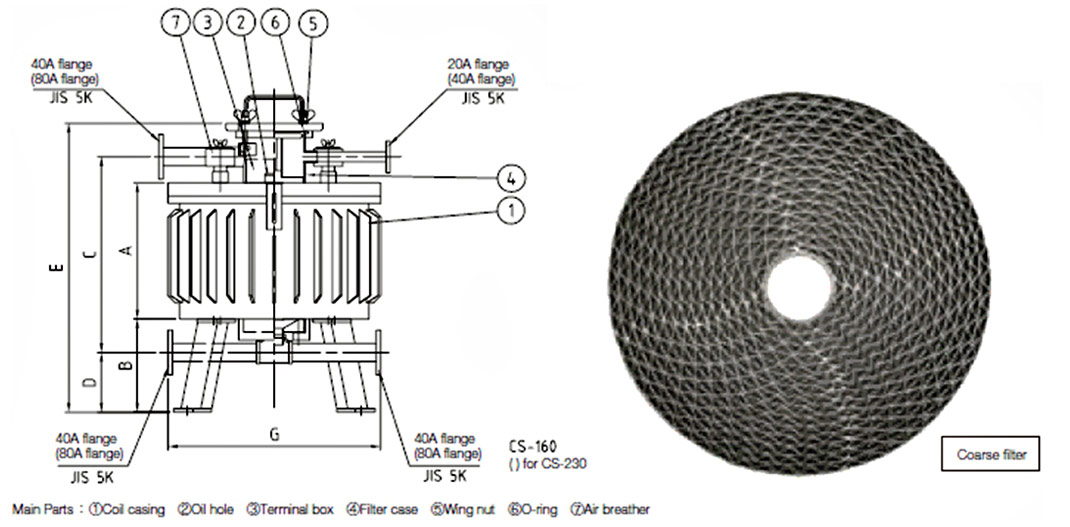

Main Dimensions
| Model | CS-160(mm) | CS-230(mm) |
|---|
| Ø1 | 570 | 840 |
|---|
| Ø2 | 200 | 260 |
|---|
| Ø3 | 160 | 230 |
|---|
| A | 405 | 515 |
|---|
| B | 235 | 275 |
|---|
| C | 610 | 800 |
|---|
| D | 145 | 140 |
|---|
| E | 855 | 1,053 |
|---|
| F | 575 | 840 |
|---|
| G | 665 | 840 |
|---|
